技术参数 Technical Data
额定电压: AC:24,42,110,127,220,240,380,415,660V DC:24,110,220,440
额定电流: 16,32,63A
额定频率: 50～60HZ
极数: 1P+ (2极),2P+(3极)，3P＋(4极),3P+N(5极)
接地触头位置:定位按时钟的钟点位置分1-12个位置。
防护等级:1P44,1P55,1P67
Rated voltage:AC:24,42,110,127,220,240,380,415,660V DC:24,110,220,440
Rated current:16,32,63A
Rate frequency:50～60HZ
Plaguy:1P+(two poles),2P+(three poles),3P+N+(five poles)
Earth contact place:time as clock set 1-12
Safety grade:IP44,IP55,IP67

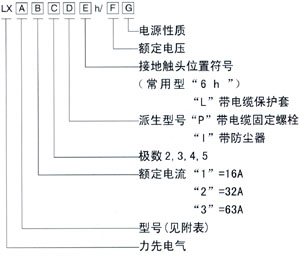

型号含义 Model signification
 |
Power property
Rated voltage
Earth contact place symbol
(Regular model "6h")
"L"Protective sheath with power supply
Derive model "P"Fixed bolt with power supply
"T"With dust remover
Pole 2,3,4,5
Rated current "1"=16A
"2"=32A
"3"=63A
Model(see annexed table)
LIXIAN |
| 型号代号 Mode code |
说明 |
Description |
| 0 |
插头 |
Plug |
| 1 |
插座 |
Socket |
| 2 |
耦合器(连接器) |
Coupler(connector) |
| 3 |
暗装直座 |
Panel mounting straight socket |
| 4 |
暗装斜座 |
Panel mounting angled socket |
| 5 |
器具插座 |
Utensil socket |
| 6 |
斜式器具插座 |
Inclined utensil socket |
| 7 |
安全插座带漏电保护 |
Safety socket with creepage protection |
| 8 |
直角插头 |
Right-angle plug |
| 164P |
四极扁插头 |
Four poles flat plug |
| 164S |
四极扁插座 |
Four poles flat socket |
| 105-02P |
欧陆式插头 |
European type Plug |
| 105-02H |
欧式暗装插座 |
European type hide socket |
| 105-02HC |
欧式连接器 |
European type socket with shutter |
| 105-02HO |
欧式带保护罩插座 |
European type socket with shutter |
| 1013 |
三头耦合器 |
three-head coupler |
| 1601 |
多功能工业插座 |
Multiple-outlet sockets for industrial use | 符合工业使用标准的IEC60309插头和输出插座
IEC 60309 plugs and socket-outlets for industrial use standards
CEIRSIEC 系列工业插头和插座符合以下国际标准:IEC60309-1和IEC60309-2，CEIEN60309-1和CEIEN60309-2,也符合VDE0623和BS4343。
CEIRSIEC’series industrial plugs and socket-outlets are in comppliance with the following international standards:IEC60309-1&IEC60309-2,CEIEN60309-1&CEIEN60309-2。
They are also in compliance with the standards:VDE0623,BS4343。
优点 Advantage
该产品具有很好的绝缘性能，具有防水、防尘、防溅、防腐抗老化等特点，并有先进的设计，因而适用于IP44和IP67等级所需要的环境中。
The base materrials are CYLON6,which provides good features for the products,such as good insulating,resistant against most chemicals and salt-water,extremely cold-proof and almost unbreakable.For the advanced design they are suitable to be used in special environment,where IP44 or IP67 protection degree is required.0 | |
